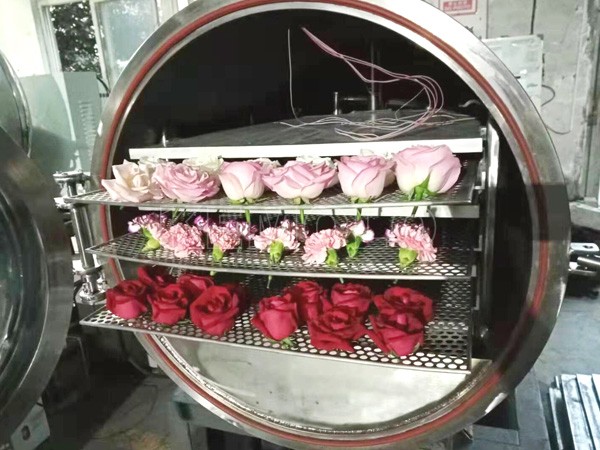

Flower lyophilizer



To produce permanent flowers, lyophilization is the best way. You must use a flower lyophilizer for this process. Other lyophilizer cannot produce lyophilized flower. Kemolo currently designed and manufactured two models for flower lyophilization. If the users are interested in other capacity, it can be customized.



The features of flower lyophilizer

1, The thermal transfer for freezing flowers must through the space in the lyophilization chamber.

2, The thermal transfer for heating flowers must through the space in the lyophilization chamber.

3,  Radiant type of lyophilizers are much more efficient than conductive type.

4,  It consumes less energy to lyophilize flower than fruits lyophilization.

5,  The lyophilized flowers must be sealed in a bottle or box.



Technical data

Model

FD-20

Shelf area

2.08m2

Capacity (Φ60mm, stem<50mm)

400 flowers

Capacity (Φ50mm, stem<50mm)

600 flowers

Capacity (Φ40mm, stem<50mm)

1000 flowers

Capacity (Φ30mm, stem<50mm)

1600 flowers or 20kg

Capacity (Φ20mm, stem<50mm)

3500 flowers or 20kg

Capacity (Φ10mm, stem<50mm)

12000 flowers or 20kg

Drying chamber material

Stainless steel SUS304

Drying chamber strength

-0.1Mpa

Shelf quantity and material

5 layers; FDA certified AL-6063-T5

Shelf size (mm)

600*700mm

Shelf spacing

60-80mm

The diameter of hole

10mm (can be customized)

Product Freezing

In the machine

Freezing temperature

-30

The shape of vapor condenser

Round tube

Vapor condenser temperature

-40

Refrigeration system

Cooling both flowers and vapor condenser

Refrigeration compressor

Low temperature compressor

Refrigerant

R404A

Cooling way

By air cooling

Vacuum pump

Double stage rotary vane vacuum pump

Ultimate vacuum level (Pa)

10 Pa (non-load)

Working vacuum level (Pa)

<100pa

Installed power

3.5kw, 200-480V, 3P, 50/60Hz

Defrost way

By water

Control system

PLC with HMI; Manual control

Installation area (m2)

2 m2

Estimated dimension

1800*1100*2000mm (L*W*H)

Estimated Weight (kg)

1200kg



Tag:   Flower lyophilizer freeze dryer
